Product Introduction

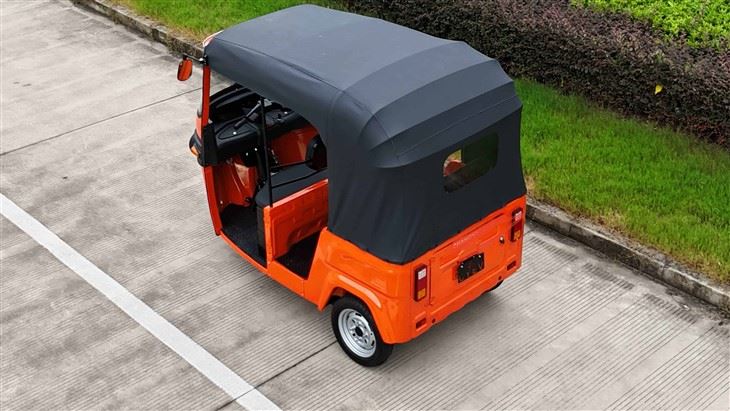

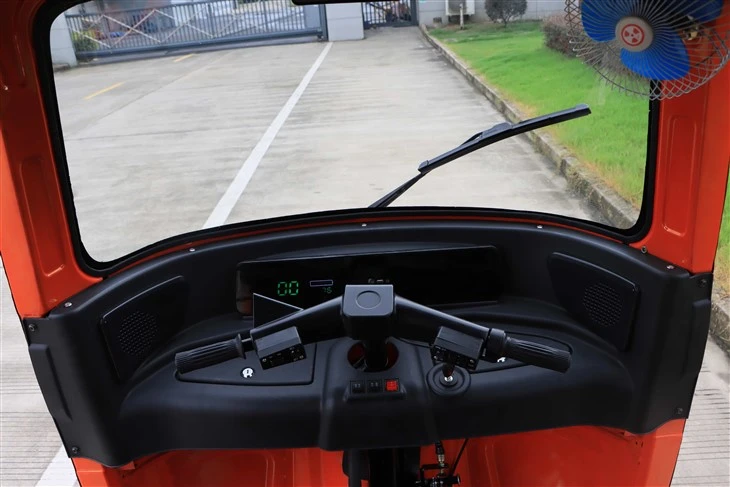

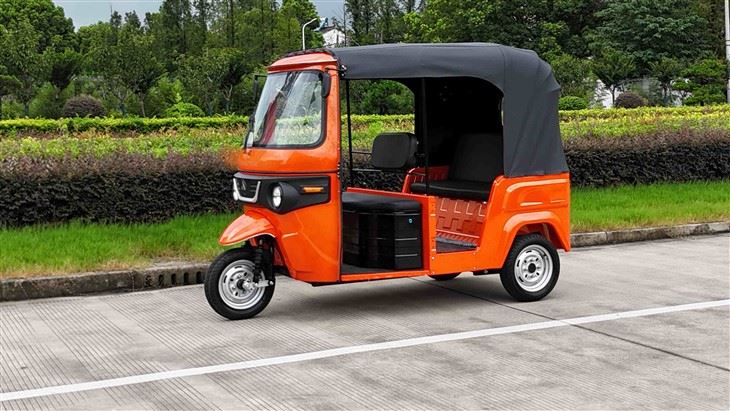

3 wheel electric tricycle for passenger This electric bicycle is equipped with a new-type lithium battery for power supply and a 3000W motor as its driving core. It serves as a transport vehicle capable of carrying both passengers and goods. Boasting benefits like eco-friendliness, energy efficiency, flexibility, convenience, and low costs, it fits well in various settings including family use, passenger transportation, sanitation work, and scenic spots.
Production Details
Leveraging a lean production model, we achieve efficient integration of scale and customization: annual production capacity exceeds 50,000 vehicles, and lead times for bulk orders are 30% shorter than the industry average. We maintain a stable supply of standardized products while rapidly responding to customized needs, providing the most stable supply to the global market.
Product Features and Applications
Features
3 wheel electric tricycle for passenger Compared with fuel tricycles and cars, electric tricycles have formed differentiated competitiveness with "environmental protection + flexibility + low cost"
Front disc brake (sensitive braking, suitable for high speed) + rear drum brake (low cost, suitable for heavy load)

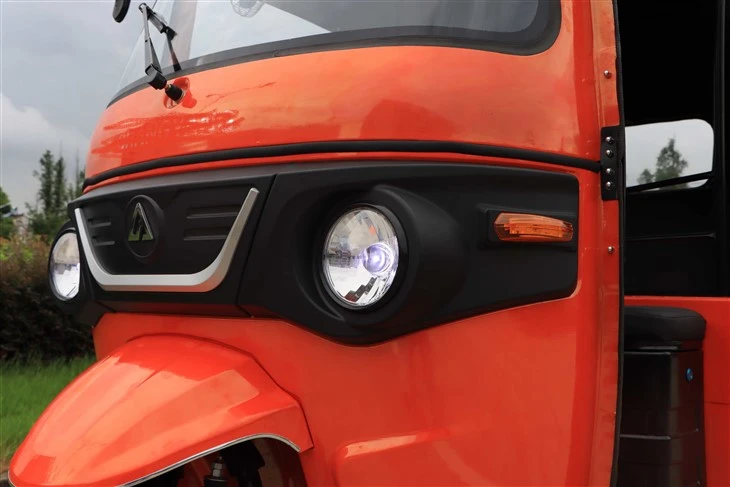

Headlight (LED energy-saving mainstream), turn signal, brake light, meet the requirements of road compliance
Semi-enclosed cabin + viewing window, with skylight (such as scenic spot shuttle model)
Composed of controller + electronic control components (sensors, switches), responsible for receiving throttle/brake signals, accurately controlling motor speed and power output
Applications
● Human transport
● Passenger transport distribution
● Harvest season support
● Building Material Hauling
● Waste Removal and General Hauling
● Household Goods Delivery
DUNYA Product Parameters
| Customer demand for heavy-duty electric three-wheeled trucks | |
| Cab | Semi-enclosed (tube frame tent) |
| Car body width | Width: 1.50m; Length: 2.3m |
| Vehicle load | 1000kg~2100kg |
| Speed | ≥55 km/h |
| Climbing slope | ≥15° |
| Factory base | |
| Vehicle model | AH2500DZH-A heavy-duty truck |
| Frame size: | 40*80*2mm integrated frame |
| Carriage size | 2300*1500*420mm steel plate compartment, bottom plate thickness 1.5mm |
| Pipe frame canopy |
Width: 980mm Length: 1100mm With waterproof backrest, electric wiper |
| Motor rated power | 72V4500W-magnetic encoding motor |
| Controller specifications | 4500W magnetic encoding controller |
| Tire size | Front and rear wheels: 500-12-10P |
| Front and rear wheelbase | 2450 |
| Braking mode | Drum brake-220 |
| Vehicle load | 1000-2100kg |
| Vehicle weight | |
| 40 full container loading quantity | Loading method: semi-loose |
| Battery parameters and price | |
| Battery specifications | 72V150AH (BMS-Jiabaida) |
| Charger specifications | 10A |
| Charging time | Slow charging: 8-10 hours |
| Battery life | 2000 times, charge and discharge |
| Free warranty | We implement the after-sales buyout system: for every 200 sets of batteries, we will give you one set of batteries of the same model and three protection boards. We also provide a more convenient maintenance environment and corresponding spare parts. |
| Maximum speed | ≥45 km/h |
| Loaded mileage | ≥80㎞ |
| Unloaded mileage | ≥120㎞ |
| Battery parameters and price | |
| Battery specifications | 72V150AH (BMS-Jiabaida) |
| Charger specifications | 15A |
| Charging time | Slow charging: 8-10 hours |
| Battery life | 2000 times, charge and discharge |
| Free warranty | We implement the after-sales buyout system: for every 200 sets of batteries, we will give you one set of batteries of the same model and three protection boards. We also provide a more convenient maintenance environment and corresponding spare parts. |
| Maximum speed | ≥45 km/h |
| Loaded mileage | ≥100㎞ |
| Unloaded mileage | ≥150㎞ |
Product Qualification
Our products comply with ISO 9001:2008 international quality management system certification and China CCC compulsory certification standards. With a supply chain system covering more than 60 countries and a 24-hour technical support team, we continue to export mature travel solutions to the international market.
